Advanced Uncoupling Protection to Prevent Tile and Grout Cracking

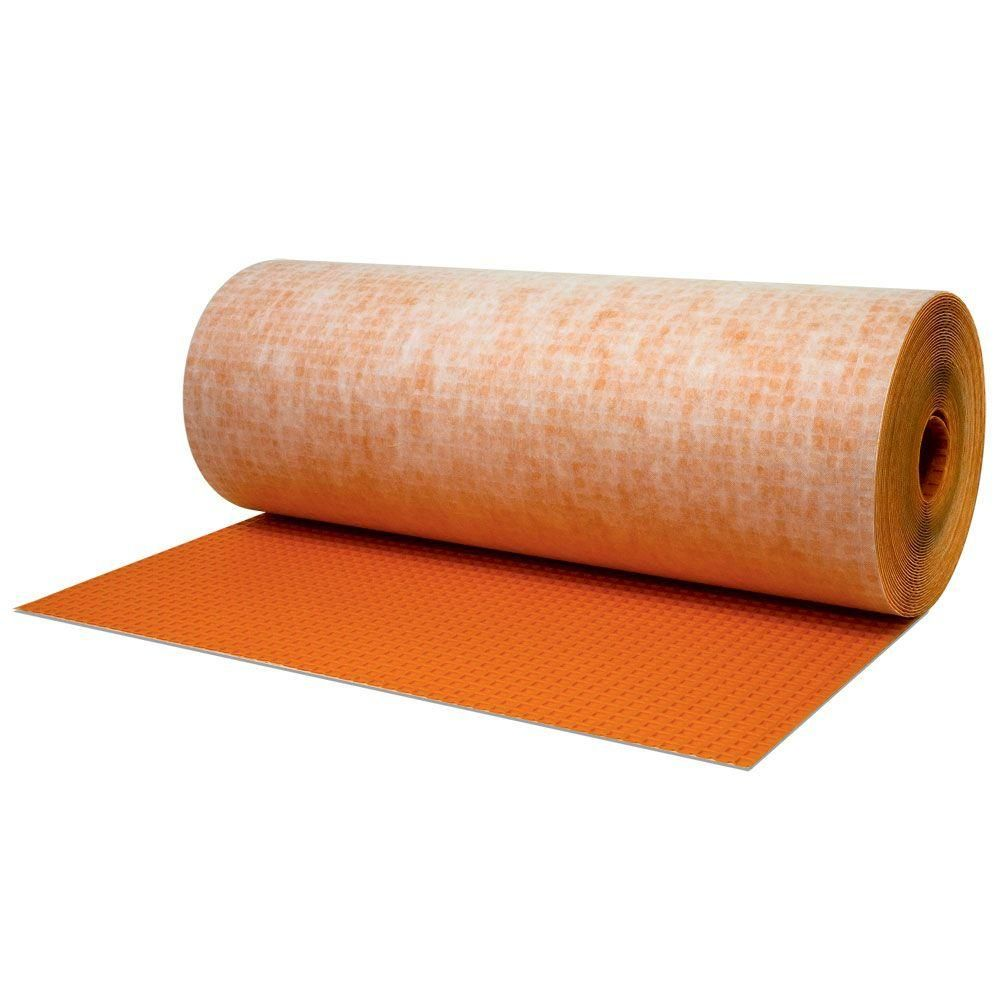

Schluter DITRA Uncoupling and Waterproofing Membrane is specifically engineered for ceramic and natural stone tile installations. Its primary function is uncoupling—creating a protective layer between the substrate and tile covering to prevent stress transfer.

By allowing in-plane movement within the substrate, DITRA helps eliminate one of the leading causes of tile failure: cracking and grout joint damage due to differential movement.

Integrated Waterproofing for Moisture-Sensitive Substrates

Constructed from durable polyethylene, DITRA serves as a reliable waterproofing layer that protects substrates such as plywood and OSB from moisture intrusion. This is especially important in kitchens, bathrooms, laundry rooms, and other high-moisture environments.

The membrane helps safeguard:

• Wood subfloors

• Concrete slabs

• Gypsum underlayments

• Radiant heated floors

This added layer of protection contributes to the long-term durability of the entire tile assembly.

Vapor Management That Preserves Tile Integrity

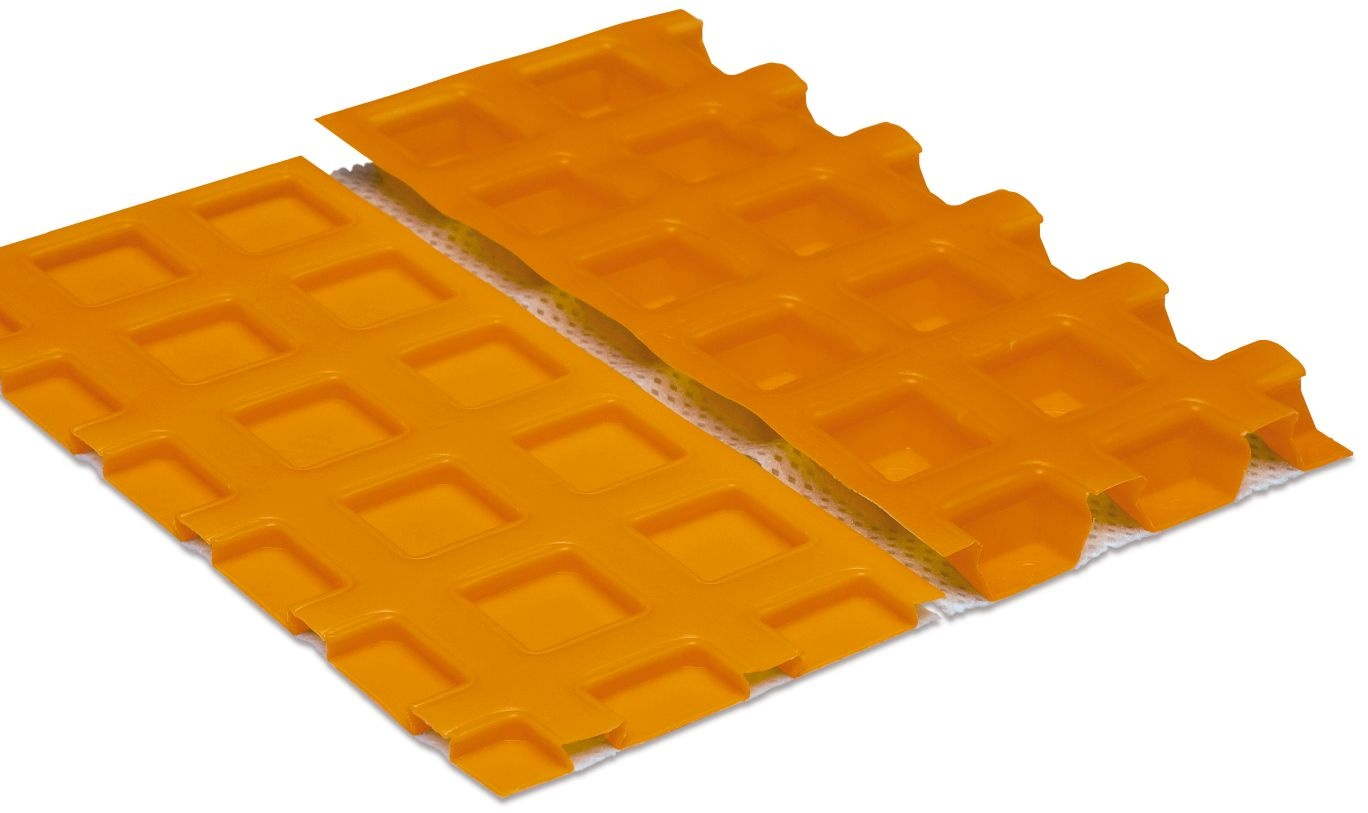

DITRA’s unique cavity structure allows excess moisture and vapor to escape from the substrate. Without proper vapor management, trapped moisture can lead to tile damage and bond failure over time.

The air channels beneath the membrane promote balanced moisture dissipation, supporting stable tile performance in a wide range of installation conditions.

Heavy Load Distribution with Structural Support

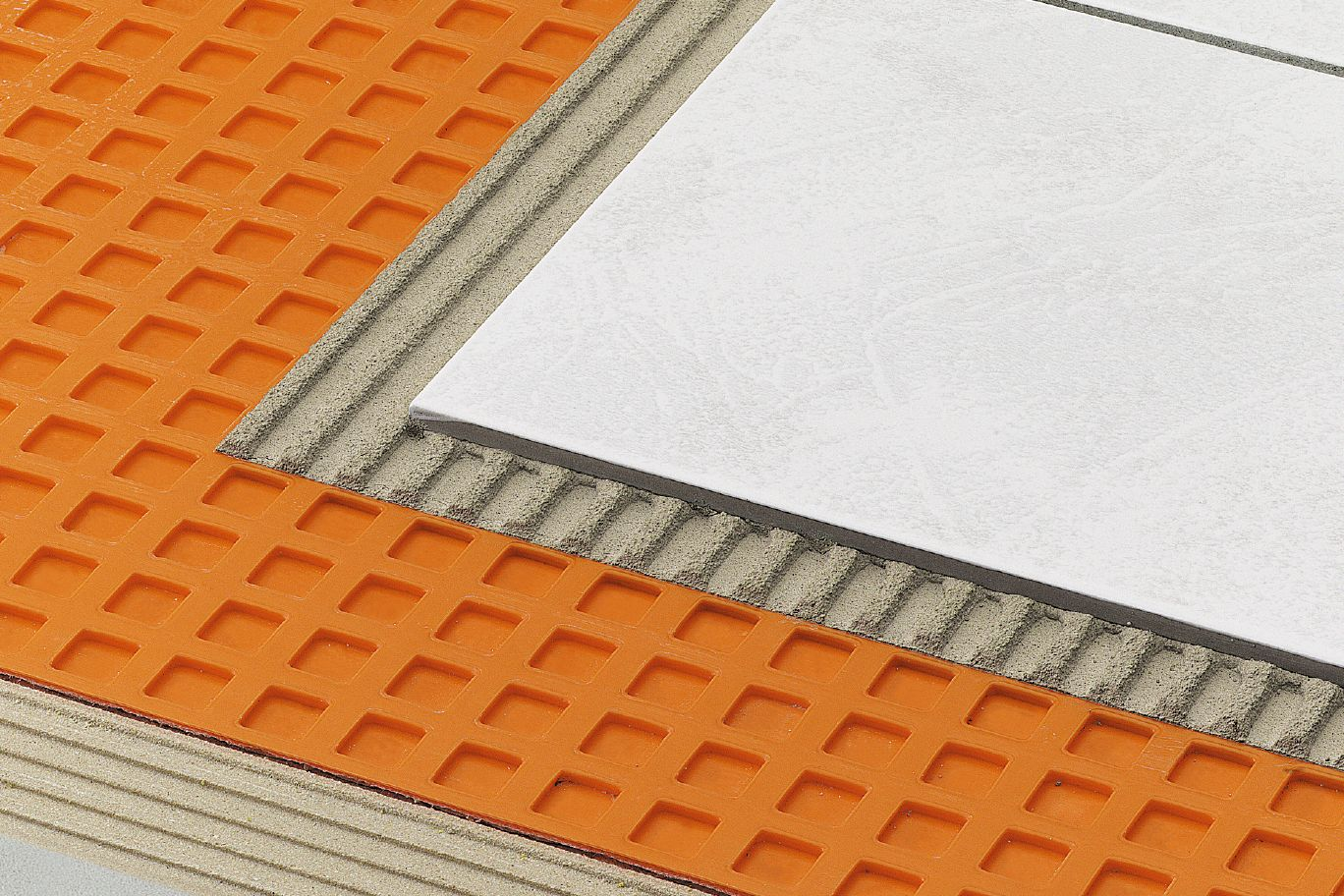

The interlocking rib configuration forms column-like mortar structures once filled during tile installation. These structures effectively transfer loads from the tile surface to the substrate below.

Because DITRA is virtually incompressible within the tile assembly, it delivers strong load distribution while maintaining uncoupling performance. This makes it suitable for both residential and light commercial tile applications.

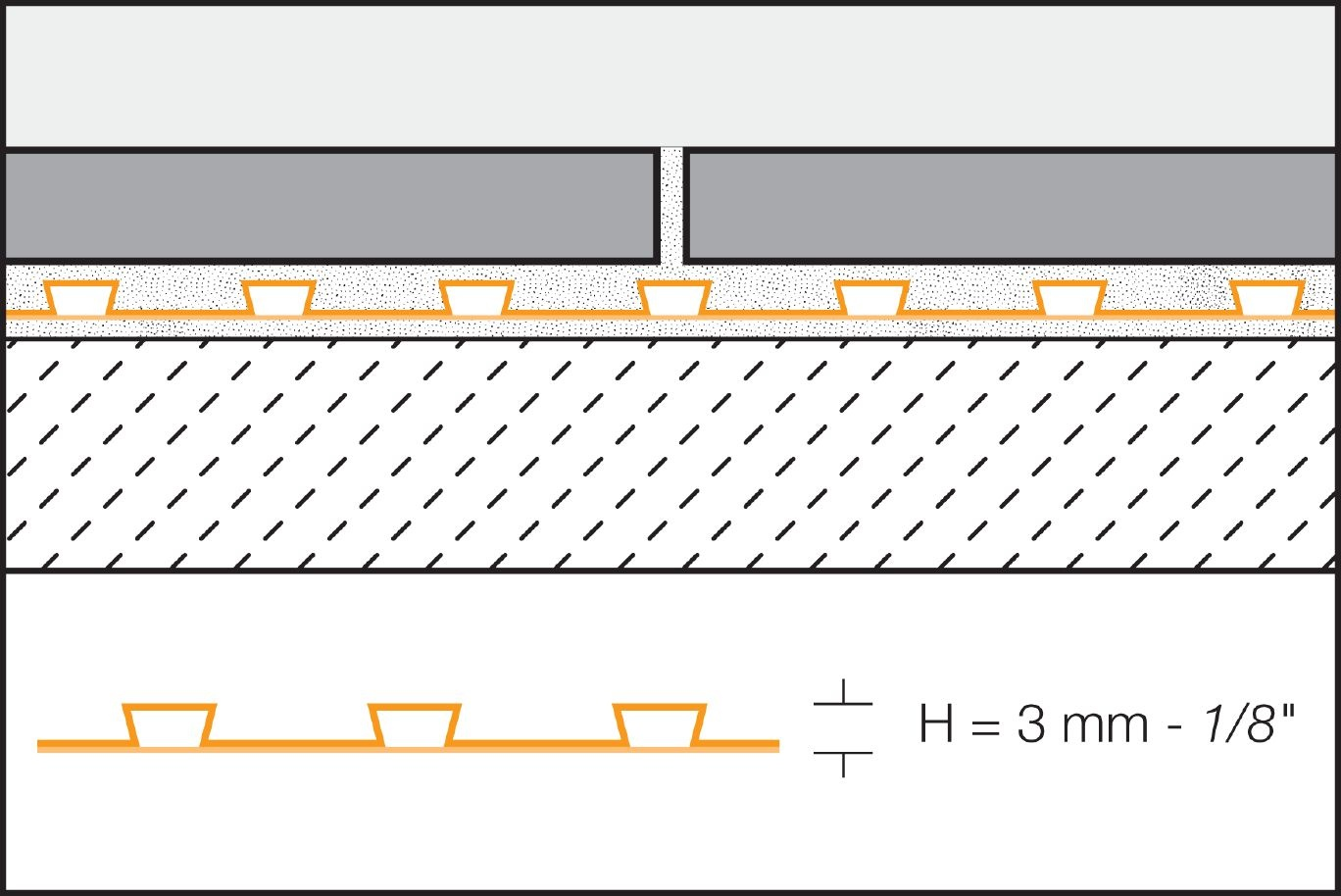

Low-Profile 1/8" Design for Smooth Floor Transitions

With a nominal thickness of just 1/8" (3 mm), DITRA minimizes overall tile assembly height. This helps reduce transition issues when connecting to lower floor coverings such as vinyl, hardwood, or laminate.

Its slim profile makes it an ideal choice for remodeling projects where maintaining floor height is critical.

Versatile Installation Over Multiple Substrates

DITRA can be installed over a variety of properly prepared surfaces, including:

• Concrete

• Plywood and OSB

• Existing vinyl flooring

• Structural plank subfloors

• Radiant floor heating systems

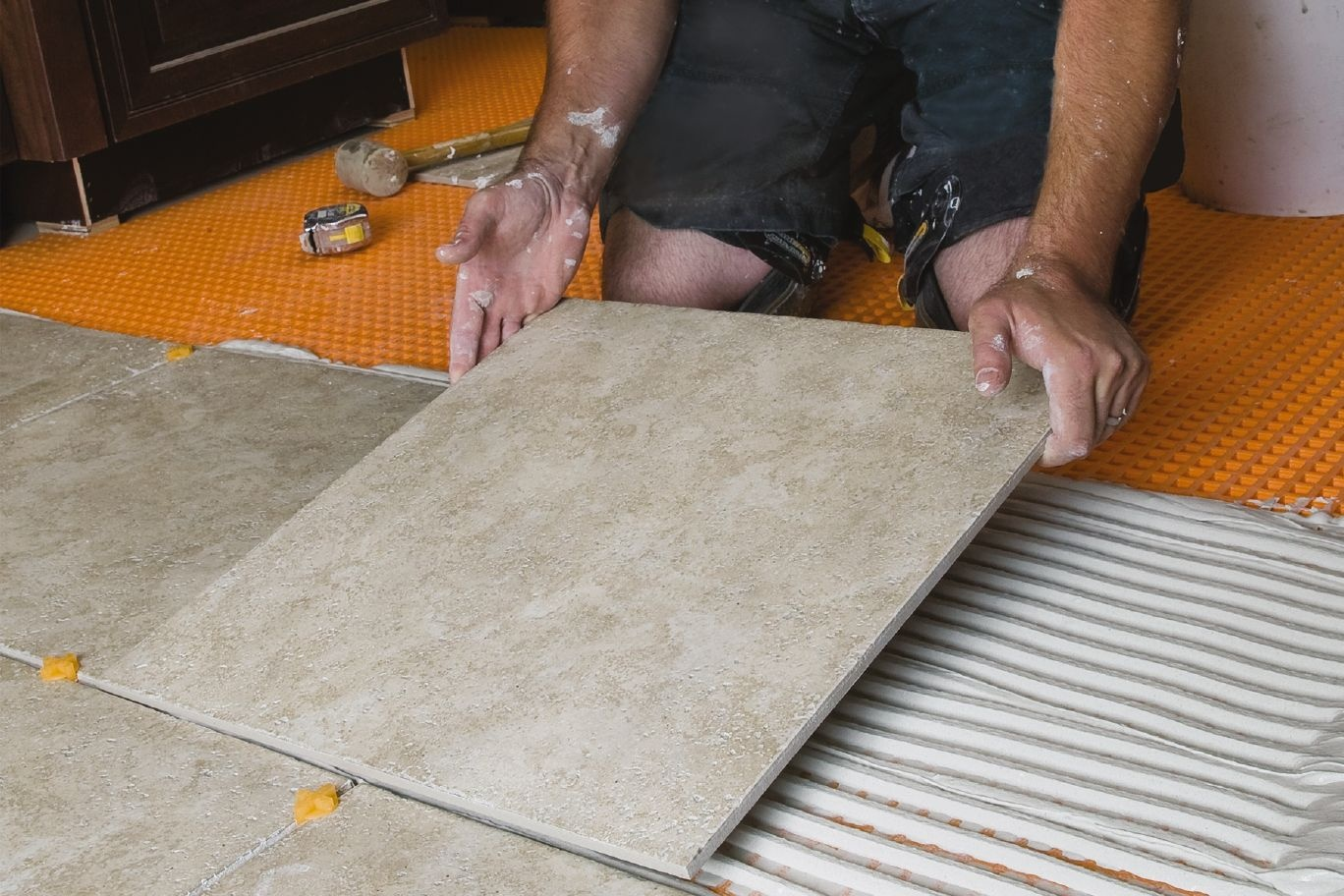

The non-woven felt backing bonds securely to the substrate without filling the cavity structure, allowing for quick installation and immediate readiness for tile placement.

Professional-Grade Tile Underlayment Built for Durability

Schluter DITRA combines uncoupling, waterproofing, vapor management, and load support in one integrated membrane. Easy to install and ready to tile immediately, it provides a dependable foundation for long-lasting ceramic and stone tile installations.
