Integrated Electric Floor Heating with Proven Uncoupling Performance

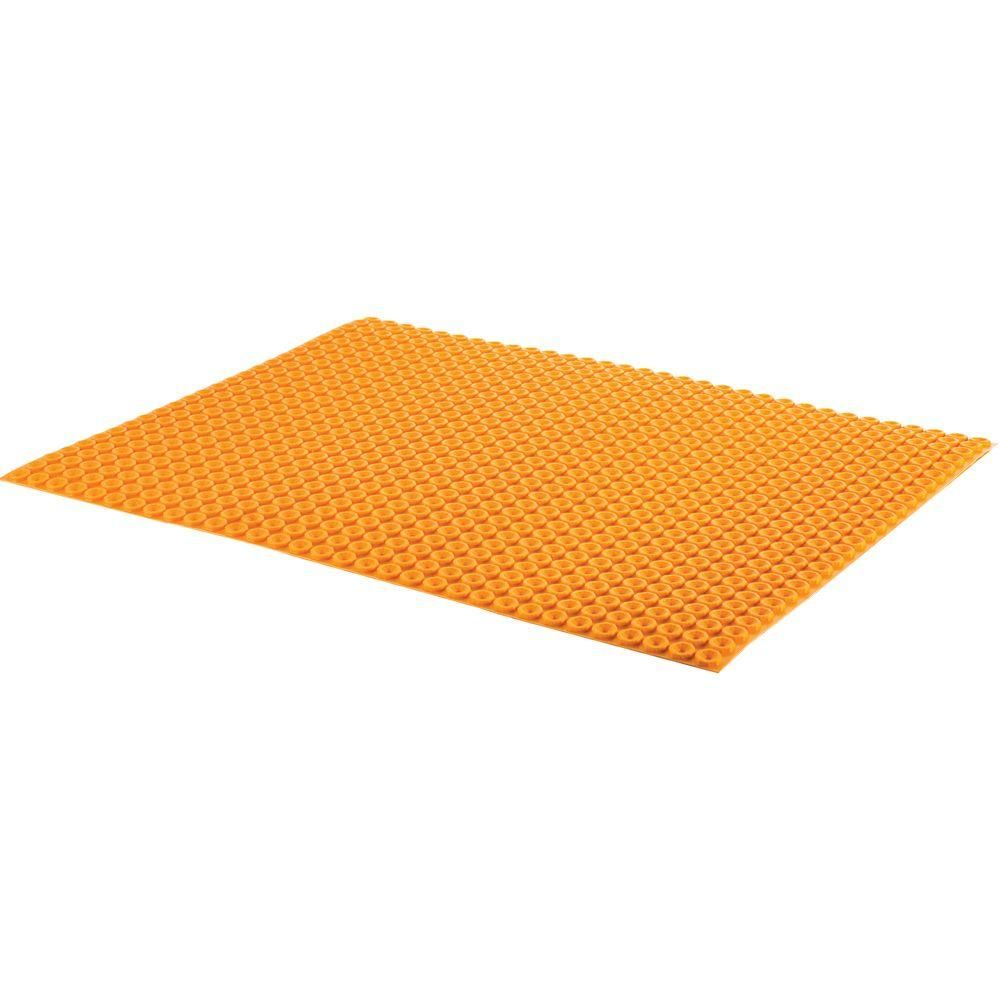

Schluter DITRA-HEAT Floor Heating Uncoupling Membrane combines customizable electric floor warming with the core performance benefits of traditional DITRA technology. It delivers consistent comfort underfoot while protecting tile and stone installations from substrate movement and moisture-related damage.

By merging heating and uncoupling into one system, DITRA-HEAT simplifies installation and enhances long-term reliability in residential and light commercial applications.

Customizable Cable Layout Without Added Floor Height

DITRA-HEAT offers the flexibility of loose heating cables with the convenience of a mat system. The studded membrane surface is engineered to securely hold Schluter-DITRA-HEAT-E-HK cables in place, allowing heat to be concentrated exactly where it’s needed.

Key advantages include:

• Cables placed only in desired heated zones

• No height differences between heated and non-heated areas

• No need for self-leveling compounds to encapsulate cables

• Faster installation with fewer materials

With a nominal 1/4" (5.5 mm) thickness, the system minimizes floor build-up and reduces transitions to adjacent coverings.

Advanced Uncoupling to Prevent Tile Cracking and Delamination

DITRA-HEAT incorporates an uncoupling layer that absorbs in-plane movement between the substrate and the tile covering. Its geometric stud configuration creates a forgiving shear interface, helping neutralize differential movement stresses.

This significantly reduces the risk of:

• Tile cracking

• Grout joint failure

• Delamination

• Stress-related surface damage

The result is a longer-lasting tile installation, even over substrates prone to expansion and contraction.

Waterproofing Protection for Moisture-Sensitive Substrates

Constructed from durable polypropylene, DITRA-HEAT provides reliable waterproofing to protect moisture-sensitive substrates. This is particularly important in bathrooms, kitchens, basements, and entryways where water exposure is common.

By preventing moisture penetration into the subfloor, the membrane supports a healthier and more durable floor assembly.

Vapor Management That Promotes Subfloor Integrity

The free space on the underside of DITRA-HEAT creates channels for excess moisture and vapor to escape from the substrate. This vapor management function helps prevent trapped moisture from compromising the tile covering above.

Effective vapor management contributes to:

• Reduced risk of mold development

• Protection of subfloor materials

• Enhanced long-term performance

Superior Load Distribution Without Sacrificing Flexibility

When installed over a solid foundation, DITRA-HEAT forms column-like mortar structures between its studs. These structures transfer loads directly to the substrate while maintaining uncoupling performance.

Because the membrane is virtually incompressible within the tile assembly, it provides strong point load distribution without compromising movement accommodation.

Compatible with Tile and Alternative Floor Coverings

Beyond tile and stone, DITRA-HEAT is suitable for use beneath various alternative floor coverings, including:

• Engineered wood

• Luxury vinyl tile (LVT)

• Luxury vinyl plank (LVP)

• Wood plastic composite (WPC)

• Stone plastic composite (SPC)

• Laminate flooring

This versatility makes it a comprehensive floor heating and substrate protection solution for modern flooring systems.

A Professional-Grade Heated Flooring System Built for Longevity

Schluter DITRA-HEAT delivers the comfort of electric floor warming alongside uncoupling, waterproofing, vapor management, and load distribution in one integrated membrane. Designed for efficient installation and long-term durability, it is a preferred choice for contractors and discerning homeowners seeking performance without compromise.
