Strategic Heat Coverage for Large Interior Floor Areas

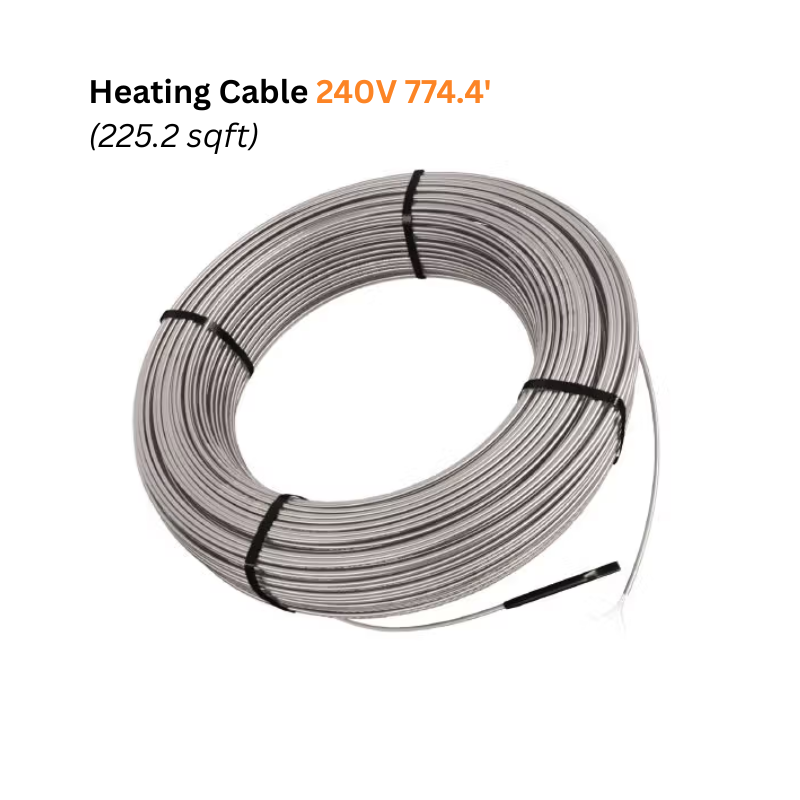

The Schluter DITRA-HEAT-E-HK 240V heating cable is engineered to provide reliable radiant warmth across medium to large floor areas up to 225.2 sqft. Designed for integration with the DITRA-HEAT uncoupling membrane, it ensures even heat distribution under tile and stone surfaces.

This makes it an ideal solution for homeowners and contractors seeking efficient floor warming without installing full HVAC-based heating systems.

Twisted Pair Engineering for Stable, Low-EMF Heating Performance

Built with a twisted pair conductor design, this heating cable reduces electromagnetic field output while maintaining consistent thermal performance across the entire installation area. It is optimized for safe indoor use beneath finished flooring systems.

Key performance advantages include:

• Low electromagnetic field emissions
• Stable and uniform heat output
• Reliable long-term electrical integrity
• Compatibility with Schluter DITRA-HEAT membrane systems

Simplified Installation Through Snap-In Membrane Integration

The cable is designed to snap directly into the DITRA-HEAT membrane without requiring clips, fasteners, or additional securing systems. This significantly reduces installation time and improves layout precision.

Installation benefits include:

• No need for self-leveling compounds over the cable
• Faster layout and reduced labor requirements
• No return wiring to thermostat required
• Secure positioning within membrane structure

This system is built to streamline professional installations while maintaining accuracy and durability.

Flexible Layout Design for Custom Heat Intensity Control

The heating cable allows multiple layout configurations to adjust heat output based on room insulation, floor type, and heating requirements. Installers can fine-tune coverage for optimal thermal performance.

Approved installation options include:

• Standard spacing for balanced heat distribution
• Alternating tight spacing (three-stud/two-stud pattern) for increased heat output
• Buffer zones for cable termination management near fixtures or transitions

This flexibility ensures adaptability for both residential renovations and new construction projects.

Critical Installation Clearances for Safe System Performance

Proper spacing is essential to ensure safety, prevent overheating, and maintain system longevity. The cable must never be placed too close to heat sources or enclosed structures.

Mandatory installation clearances:

• Minimum 2" (50 mm) from walls and fixed cabinetry
• Minimum 8" (200 mm) from fireplaces, heaters, or forced-air vents
• Minimum 4" (100 mm) from drains and air ducts
• Minimum 7" (180 mm) from toilet drain centerlines

The system must never be installed under enclosed furniture, cabinetry without airflow, or fixed structures where heat buildup may occur.

Professional Testing Protocols for Installation Reliability

To ensure system safety and long-term performance, the heating cable must be tested at multiple stages throughout installation. This is essential for both quality assurance and compliance.

Recommended testing procedure:

• Test resistance before unrolling the cable
• Perform mid-installation testing during layout
• Conduct final testing prior to tile installation
• Use a megohmmeter for insulation resistance verification

These steps help prevent installation failures and ensure consistent heating performance after flooring completion.

Ideal Applications for Residential and Light Commercial Projects

This radiant heating cable is suitable for a wide range of interior flooring applications where comfort and efficiency are required. It is particularly effective in tiled environments where underfloor warmth enhances usability.

Recommended use cases:

• Large bathrooms with tile or stone flooring
• Open-plan kitchen and living spaces
• Basement floors requiring additional warmth
• Entryways, hallways, and mudrooms
• Light commercial interior tile installations

It is not intended for installation beneath fixed cabinetry, enclosed storage spaces, or structural partitions.

Professional-Grade Radiant Heating System for Modern Builds

The Schluter DITRA-HEAT system is a contractor-trusted solution designed for efficient installation and long-term performance. Its uncoupling membrane integration helps protect flooring while delivering consistent radiant heat output.

With flexible layout options, streamlined installation, and dependable performance, this system is ideal for modern construction projects requiring efficient electric floor heating under tile and stone surfaces.
