Heated Floor Membrane with Integrated Thermal Break for Faster Warm-Up

Schluter DITRA-HEAT-DUO Floor Heating Uncoupling Membrane Sheet with Thermal Break delivers advanced electric floor warming while enhancing system efficiency. Its integrated thermal break reduces heat loss to the substrate, allowing more energy to move upward into the tile surface where it’s needed most.

This improved insulation effect can result in significantly faster heat-up times over concrete substrates, making it ideal for bathrooms, kitchens, basements, and multi-story construction where performance and comfort matter.

Built-In Sound Control for Multi-Story Living

Impact sound transmission is a major concern in condominiums, apartments, and upper-level renovations. Unlike compressible sound mats that may compromise tile support, DITRA-HEAT-DUO reduces impact sound while maintaining a solid, thin-set-compatible surface.

This dual functionality makes it especially suitable for:

• Multi-family housing

• Second-story bathrooms

• Condo renovations

• Projects requiring both heating and acoustic performance

The integrated design eliminates the need for separate sound control layers.

Customizable Electric Floor Warming Without Added Complexity

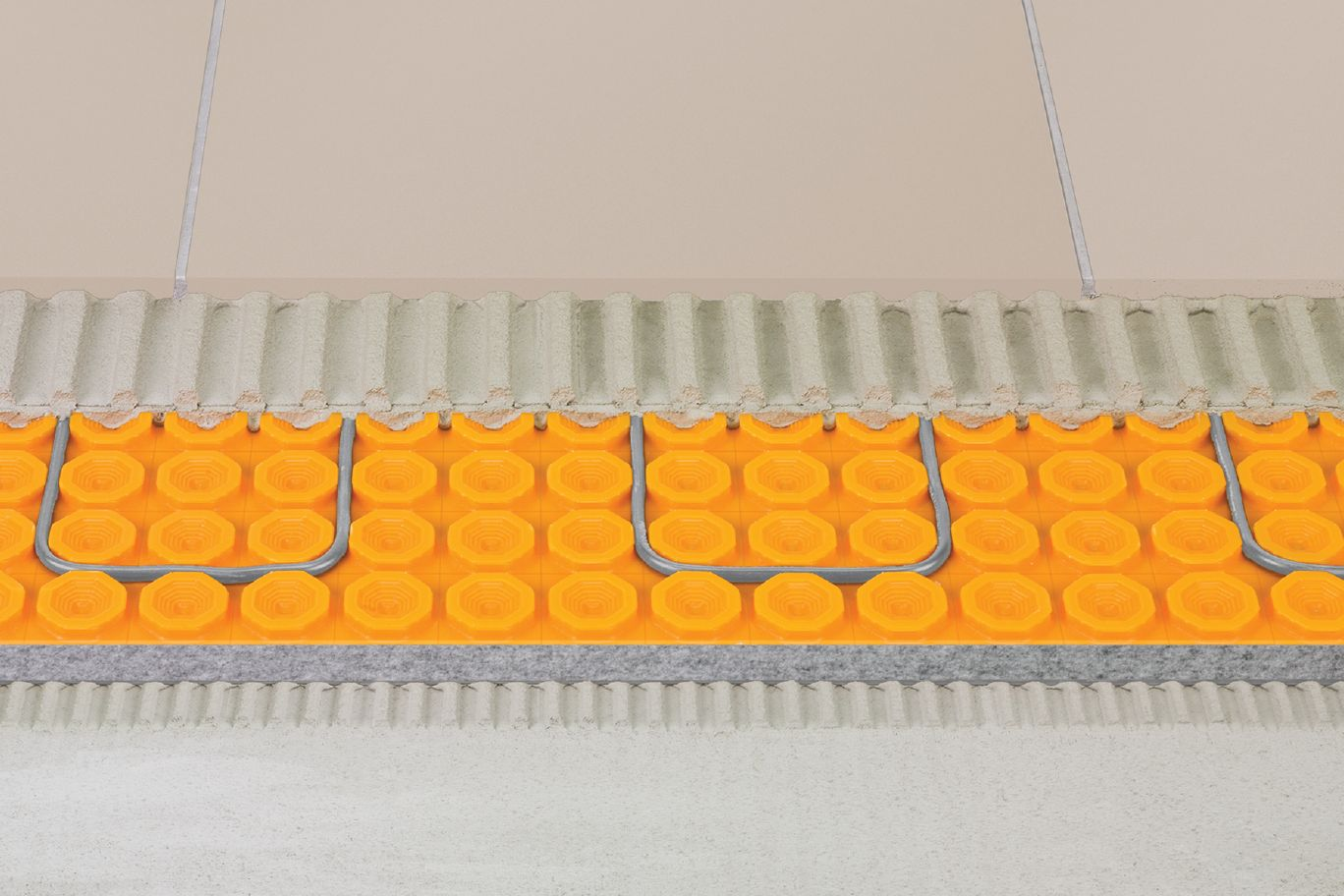

DITRA-HEAT-DUO combines the flexibility of loose heating cables with the simplicity of a mat system. The studded surface is engineered to securely hold Schluter-DITRA-HEAT-E-HK cables in place, allowing installers to position heat exactly where desired.

Key installation advantages include:

• No height differences between heated and non-heated zones

• No need for self-leveling compounds to encapsulate cables

• Quick installation with minimal tools

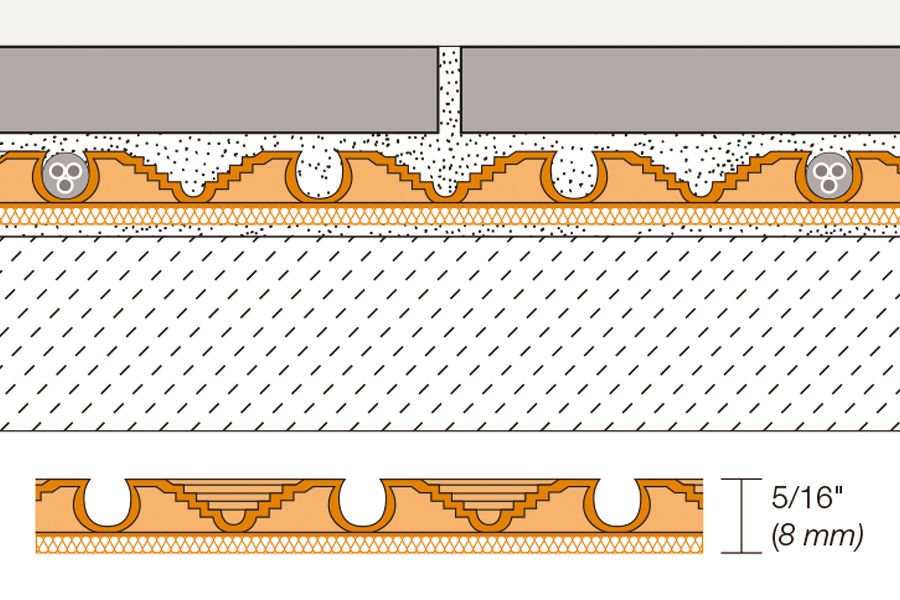

• Nominal 5/16" (8 mm) thickness to reduce floor buildup

This streamlined approach reduces labor time while delivering consistent warmth.

Advanced Uncoupling to Protect Tile from Movement Stress

The geometric stud configuration of DITRA-HEAT-DUO creates a forgiving shear interface that absorbs in-plane movement between the substrate and tile covering. This uncoupling performance helps prevent one of the most common causes of tile failure—stress from differential movement.

Benefits include:

• Reduced risk of cracking

• Protection against delamination

• Greater durability over challenging substrates

• Long-term tile and grout integrity

This makes it suitable for both new construction and renovation projects.

Waterproofing and Vapor Management in One Integrated Layer

Constructed from durable polypropylene, DITRA-HEAT-DUO provides reliable waterproofing to protect moisture-sensitive substrates. At the same time, the free space beneath the membrane allows excess moisture vapor to escape, helping maintain a balanced and durable floor assembly.

This dual moisture management system supports:

• Protection of subfloors

• Reduced risk of trapped moisture

• Improved long-term performance in wet areas

Strong Load Distribution Without Sacrificing Performance

When installed over a solid base, mortar fills the cavities between the studs, forming column-like structures that transfer loads directly to the substrate. Because DITRA-HEAT-DUO is virtually incompressible within the tile assembly, it maintains excellent point load distribution while still delivering uncoupling and acoustic benefits.

This structural reliability makes it suitable for both residential and light commercial applications.

Compatible with Tile and Alternative Floor Coverings

DITRA-HEAT-DUO is suitable for installation beneath:

• Ceramic and porcelain tile

• Natural stone

• Engineered wood

• Luxury vinyl tile (LVT)

• Luxury vinyl plank (LVP)

• WPC and SPC flooring

• Laminate

Its versatility allows contractors to deliver heated floor comfort across a wide range of finish materials.

High-Performance Heated Flooring System for Demanding Projects

Schluter DITRA-HEAT-DUO integrates electric floor warming, uncoupling, waterproofing, vapor management, sound control, and a thermal break into a single membrane sheet. Designed for efficiency, comfort, and long-term durability, it provides a complete subfloor solution for modern heated tile and resilient flooring installations.
